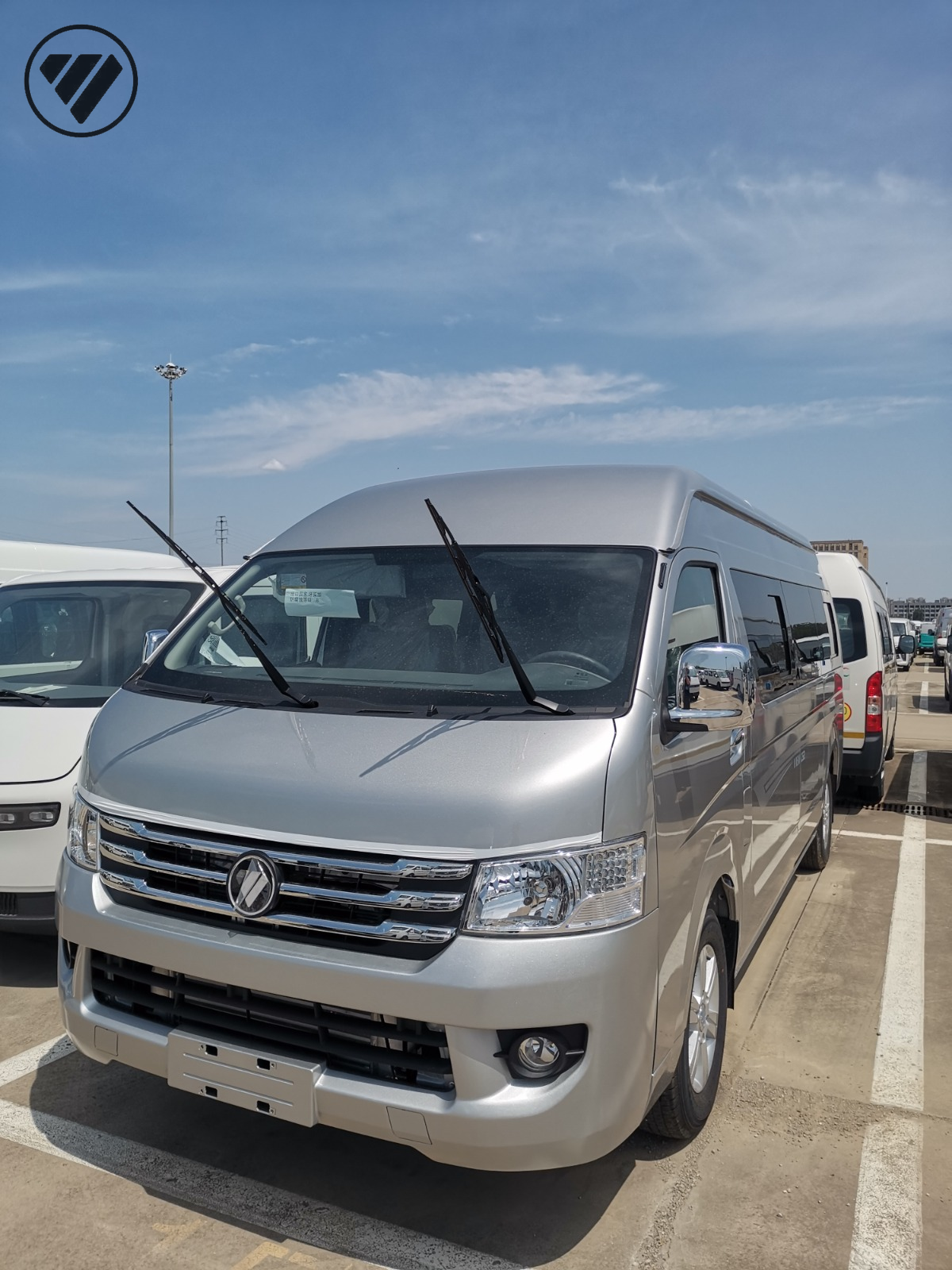

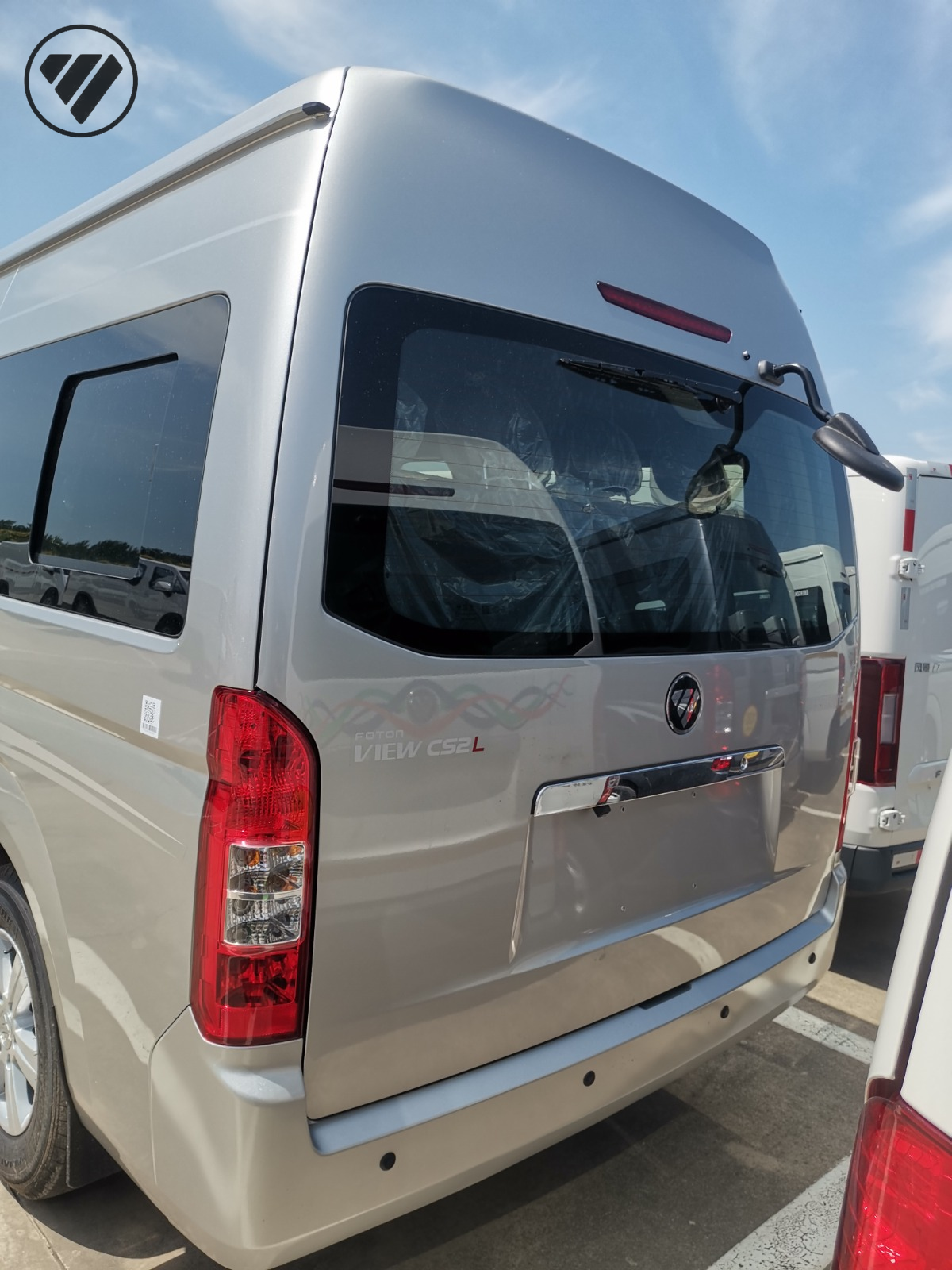

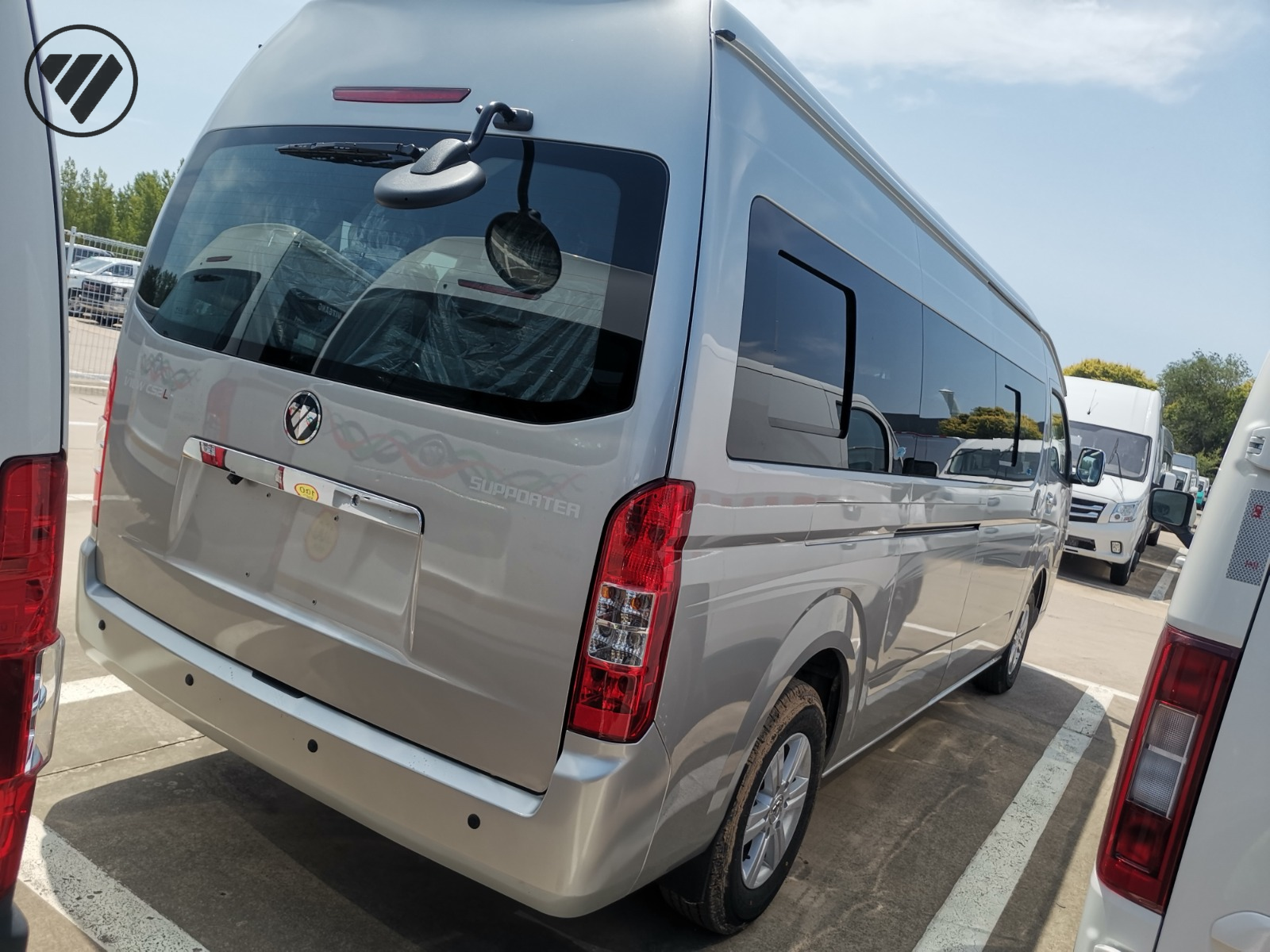

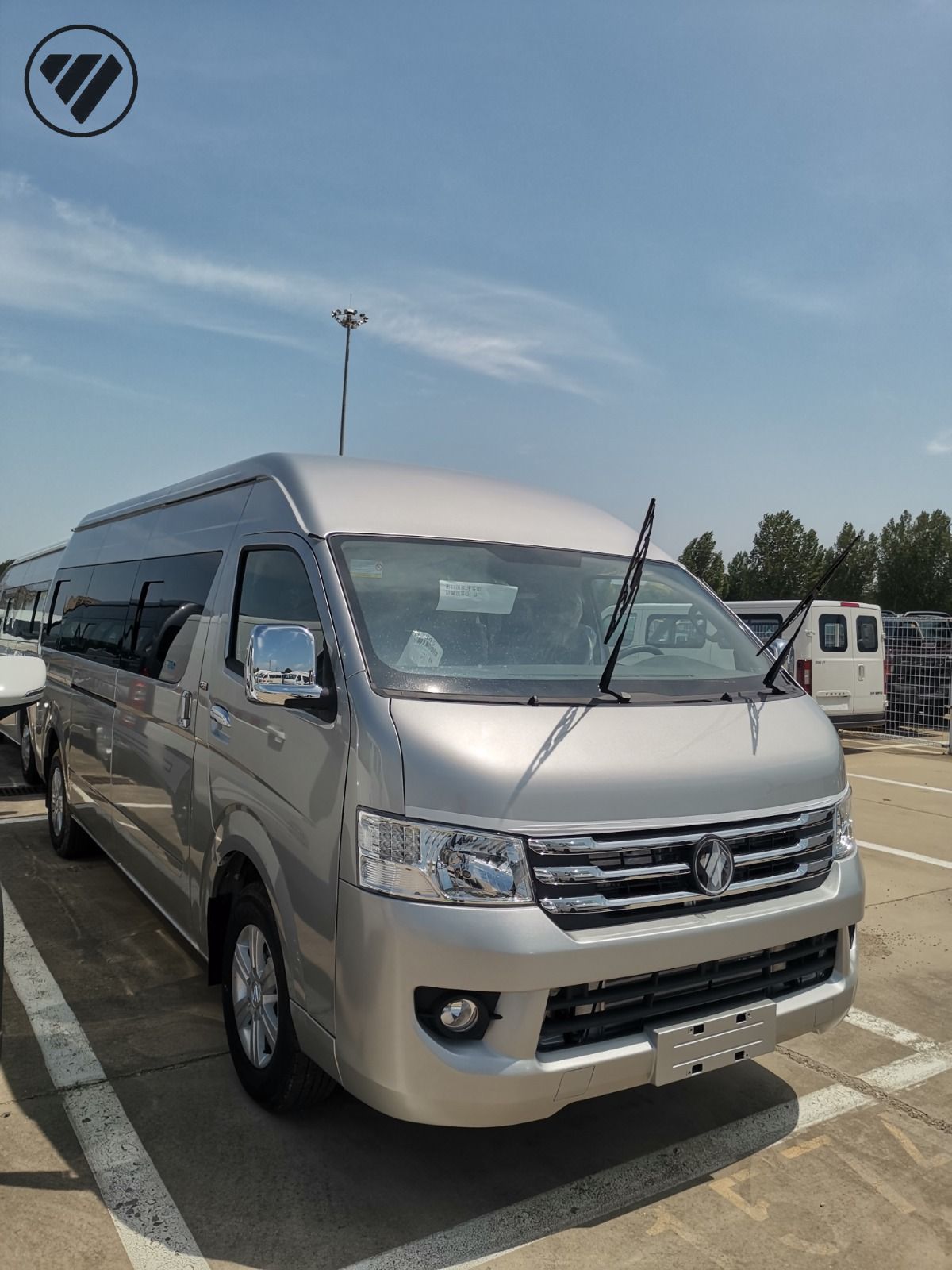

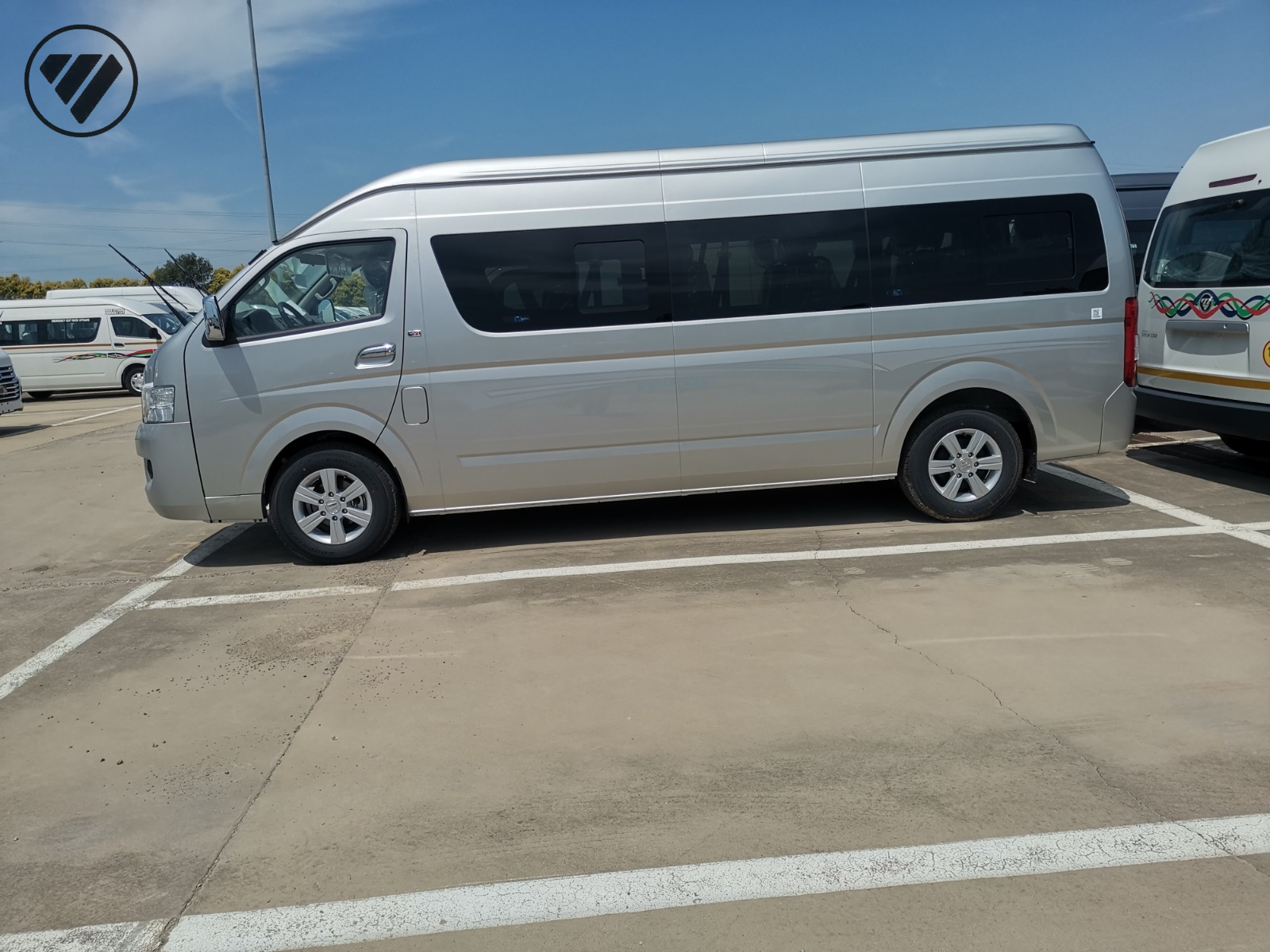

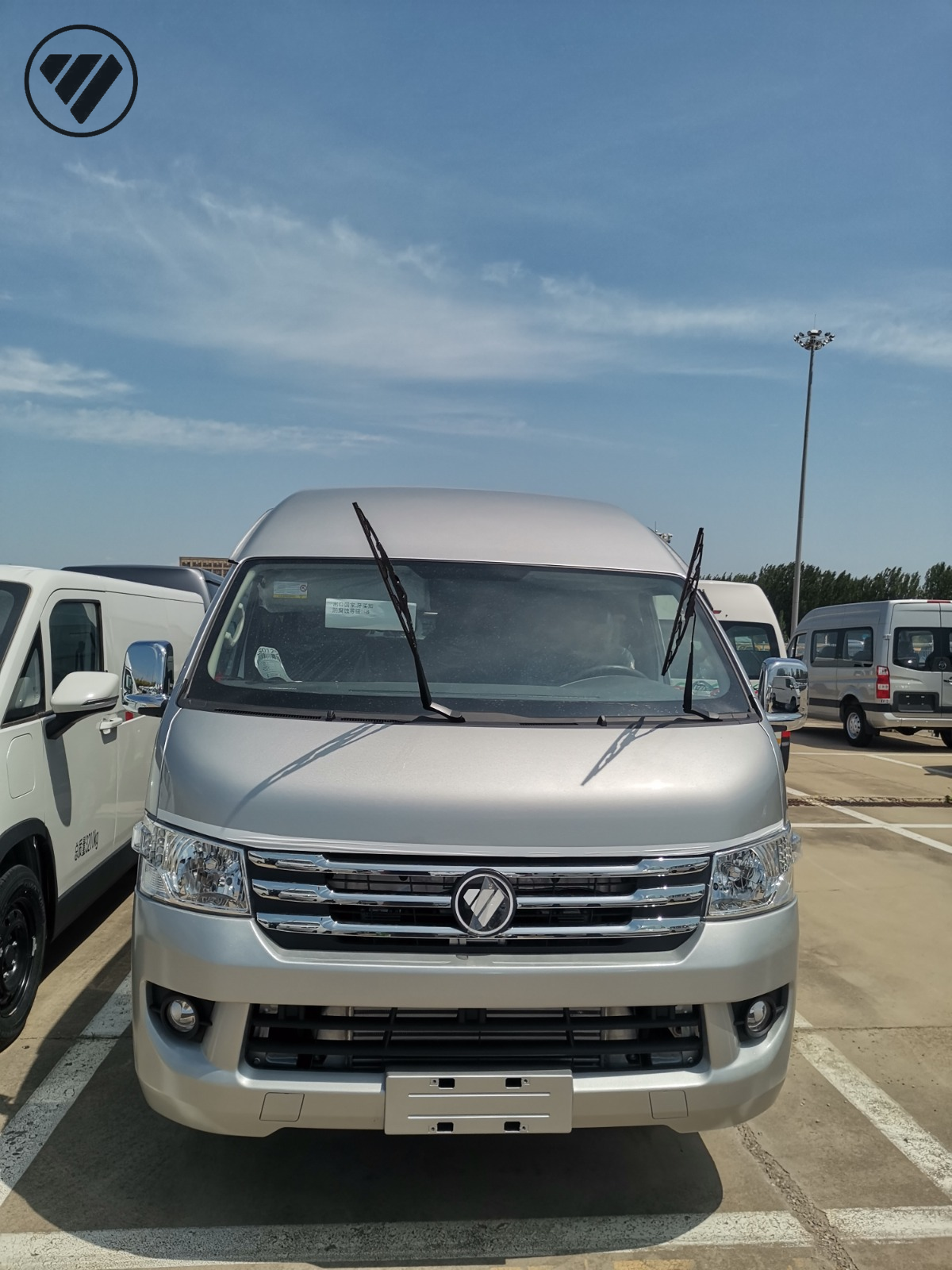

FOTON VIEW CS2

FOTON VIEW CS2

With a business scope covering a full series of commercial vehicles including medium and heavy-duty truck, light-duty truck, mini truck, van, pickup, bus, and construction machinery vehicles, FOTON has become a leading commercial vehicle manufacturer in the world with dual routes of fuel and new energy solutions. Focusing on commercial vehicle filed since it’s born.

+86 18366529998

WhatsApp

CONTACT US

- Product Description -

WITH THE CLASSIC, THE ACHIEVEMENTS OF THE FUTURE

After 17 years of quality accumulation, with integration of global landscape design concept in classic vehicles, VIEW set comfort, safety, control and bearing, fashionable large space in one. Two series of wide-body CS2 and narrow-body C2, and 9-16 seats product can meet wider demands for enterprise reception, public transport, logistics and other different business.

VIEW CS2 – Your ally in the transport of people.

View CS2 is a Van designed to be your best ally in the transfer of people, since it has a passenger capacity of 15+1, which will allow you to travel both the city and the highway, providing comfort to its occupants who will enjoy a trip comfortable and safe.

It has a high standard equipment with bi-zone air conditioning and central heating to differentiate temperatures by zone. In terms of comfort, safety and style, the View CS2 will always be your best option.

Design, Comfort and Performance.

VIEW CS2 manifests an air of elegance in every design detail. The search for perfection in space, performance, safety and workmanship never ends. With a total distance of 5,380 meters, the FOTON View CS2 stands out for its comfort for its 15 passengers , thanks to its seats, all retractable and removable, which adds great versatility of use due to the multiple possible configurations.

Superior Equipment, Comfort Assured.

VIEW CS2 is, due to technology, comfort and safety, an ideal Van for executive passenger transport, for tourism and also as school transport. It has comfortable reclining seats with headrests and cup holders, 12V power outlet, bi-zone air conditioning and three-point seatbelts that provide greater comfort to its occupants. Other features of this Van are the side mirrors and it also has an audio system with AM/FM and AUX input.

Excellence in Safety Performance

The occupant safety is essential, for this reason VIEW CS2 has front air bag systems, brakes with ABS system and braking electronic distribution (EBD), three -point safety belts, fire extinguisher in cabin, and hatch upper exhaust. For passenger and driver access, it has two front doors, a sliding side gate, and a back gate with vertical opening.


- Product Specifications -

View CS2 Technical Configuration
spacer.gifProduct combination elementBrandNew version View CS2
Vehicle ModelBJ6549B1DAA-Z2
BodyWide-body & High roof
Back doorLifted back door
Sliding doorSingle sliding door
Diesel EngineModel4F20TC16
EmissionEuro II
Power(kW/rpm)101/3600
Torque(N·m/rpm)330/1400~2000
Displacement(ml)1968
TransmissionZM036 6MT
Main technical parameter
Dimension parameter
External dimension(mm)5390×1920×2285
Wheel base(mm)3110
Front &Rear track(mm)1655/1650
Min.Turning radius (mm)6250
Front &rear overhang(mm)1200/1080
Weight parameter
Gross Weight (kg)3400
Curb Weight(kg)2300
Loading weight (kg) (including persons)/
Rear axle loading capability (kg)/gear ratio1800/4.556
SeatSeat fabricKnitting
Headrest(Passenger area)
Capacity (Person)16
Seating arrangement3+3(connnected)+3(2+1)+3(2+1)+4(Roll over)
Picture of seating arrangementspacer.gifspacer.gif
Power performance
Max.speed(km/h)≤145
Max. Gradeability(%)≥30
Trafficability
Min. ground clearance(mm)≥170
Fuel economy
Integrated operating condition of 100 km fuel consumption (full load)(L/100km)≥9.0
Technical configuration
Front suspensionThe double - wishbone independent suspension
Rear suspensionSmall leaf spring independent suspension/3+1
Steering gear typeRack and pinion
Brake systemFront disk and rear drum brake
Function configuration
Chasis system
Power Steering + adjustable columnHydraulic power steering
Energy-absorbing steering column
Can crumple the direction of column
Wheel assyTyre195R15C
Steel ring+Cover×
Spare tireSteel rim
Aluminium alloy
Safety deviceDriver and co-driver air bag
Whole vheicle 3-point safebelt ,excludign the middle seat between driver and co-driver as 2-point one
Front fog lamp
Reverse radar
ABS+EBD
Interior trim
TypeOrdinary gray
Half a pack / all-inclusiveHalf pack of interior(Fiberboard)×
Half pack of interior(PP Injection molding)
Full package interior×
CeilingPVC+Non-woven
Polyurethane + non-woven×
PVC×

Sliding window4
CarpetPVC+ NVH acoustic package
Widow and doorCentral Locking
Power Window
Driver and co-driver sun visor
Leather steering wheel
Front and  rear Air Conditioner
Audio deviceMP3+Radio
Speaker4
External trim
Vehcile body color bumper+review mirror +handle
Chrome-coated front drille
Power adjusting and hand folding without turning lamp and defrost fuction
Electric height adjsting headlamp
Rear wndshield, washer and defroast.
Container Loading   ($3600/40'HC)2 Units/40'HC
Unit Price FOB Qingdao (USD)17,300.00
Warranty: 3 years or 100,000 kilometers, and the condition that is reached
first shall prevail
Lead time: Within 40 days after receiving the advance payment
Remarks: The price will be valid within 60 days from date of quotation
