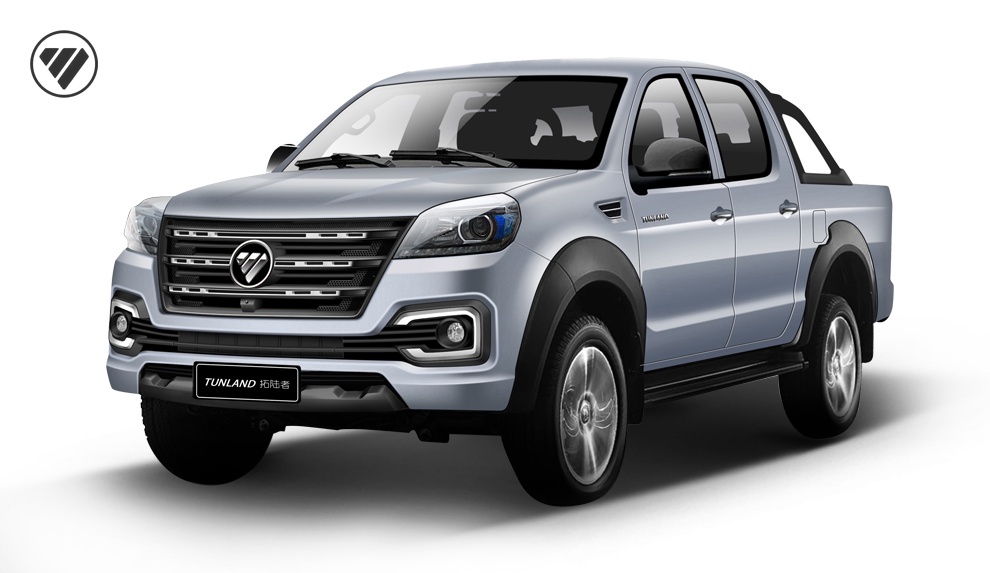

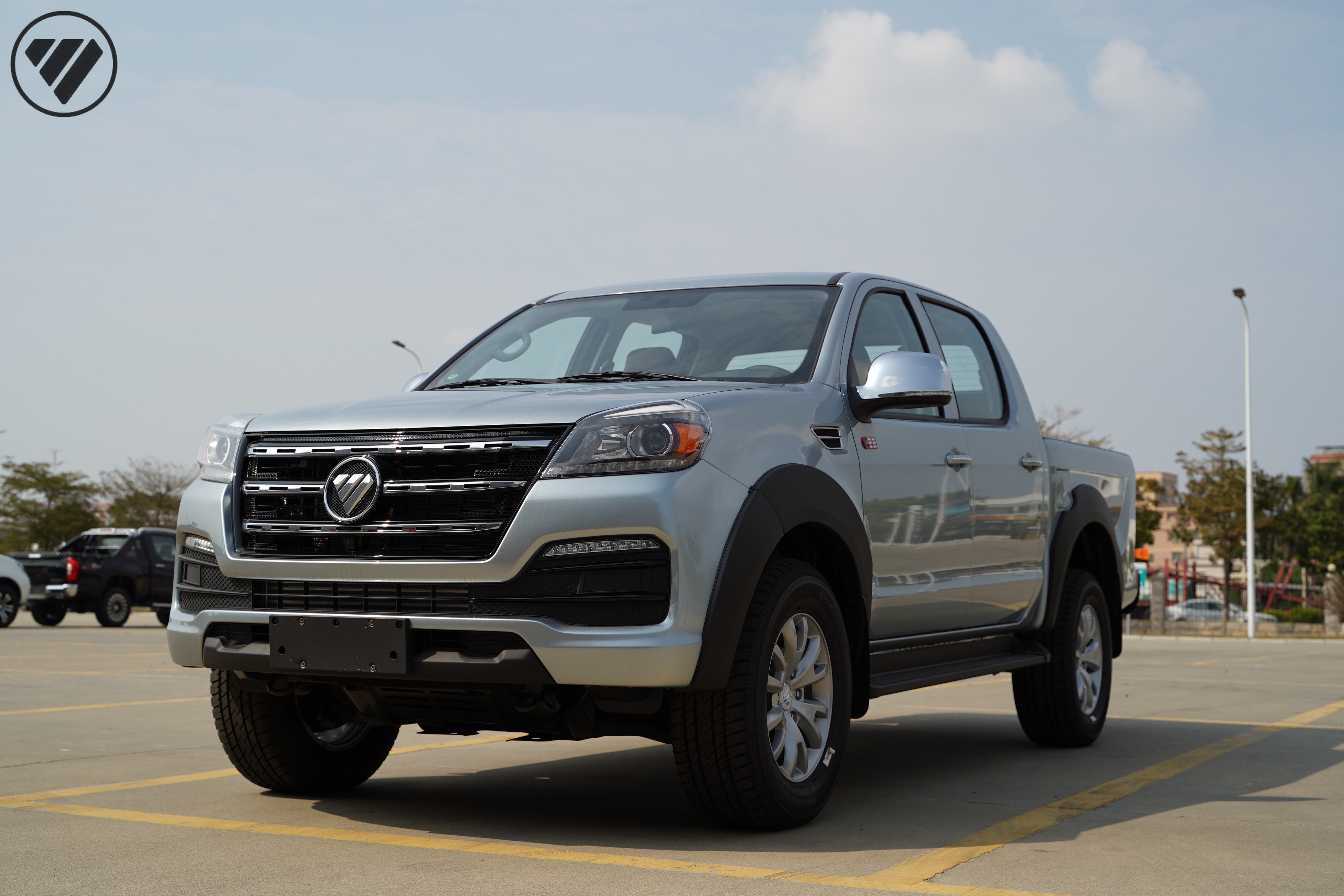

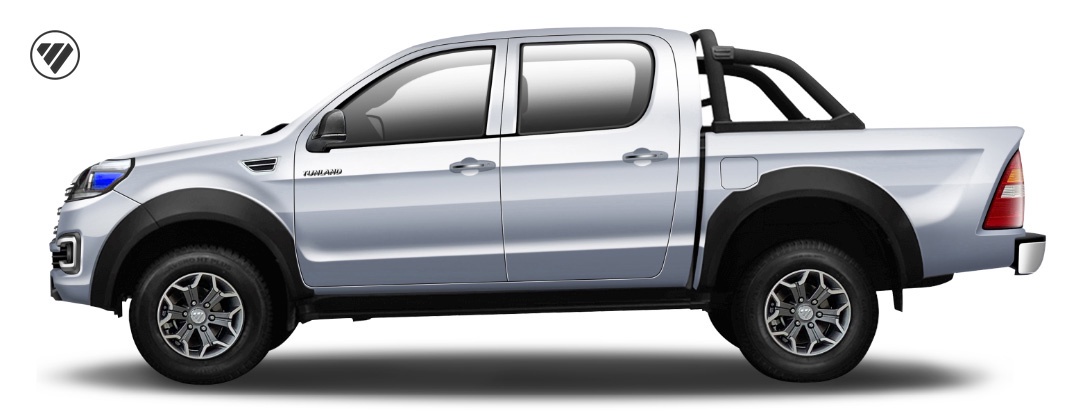

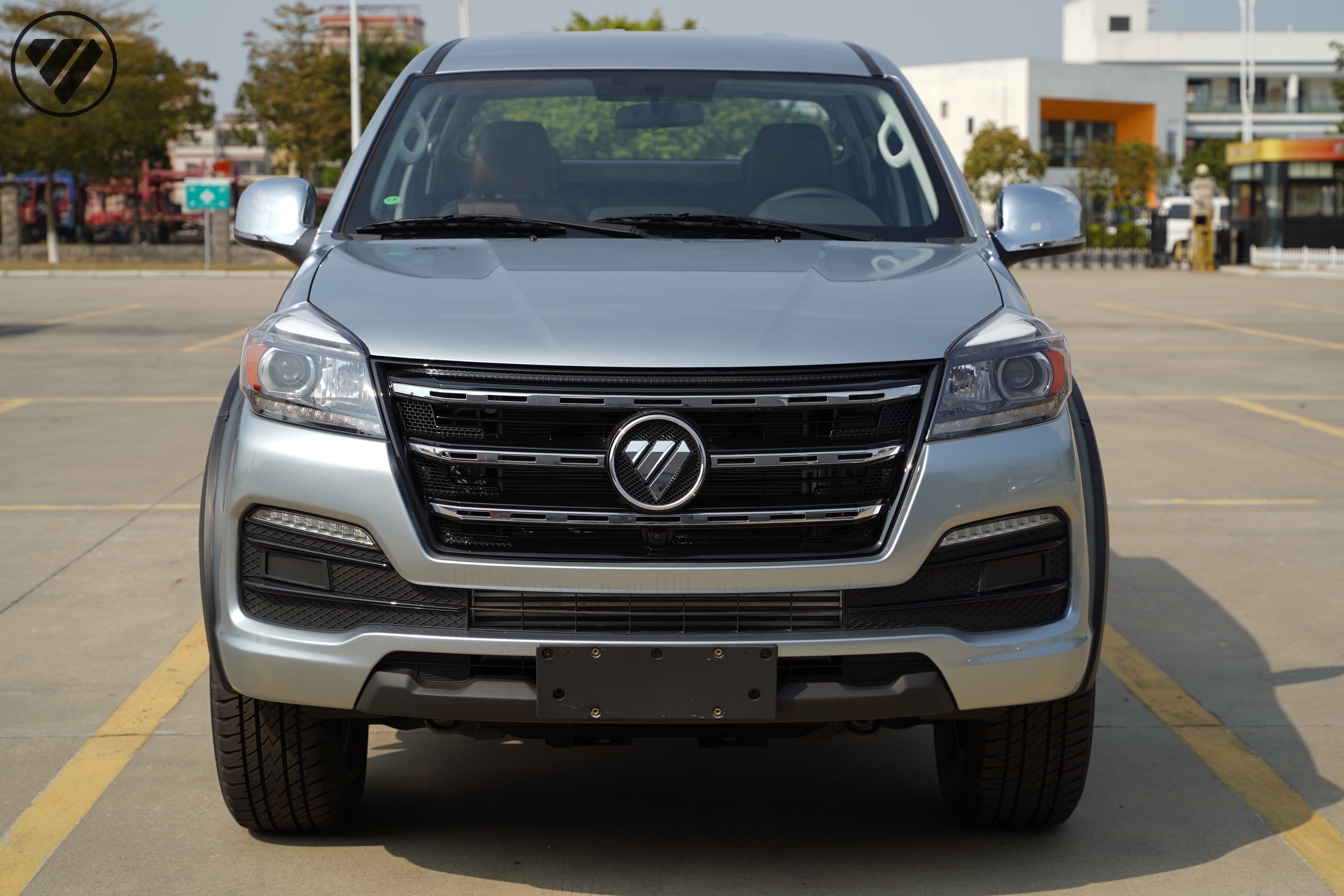

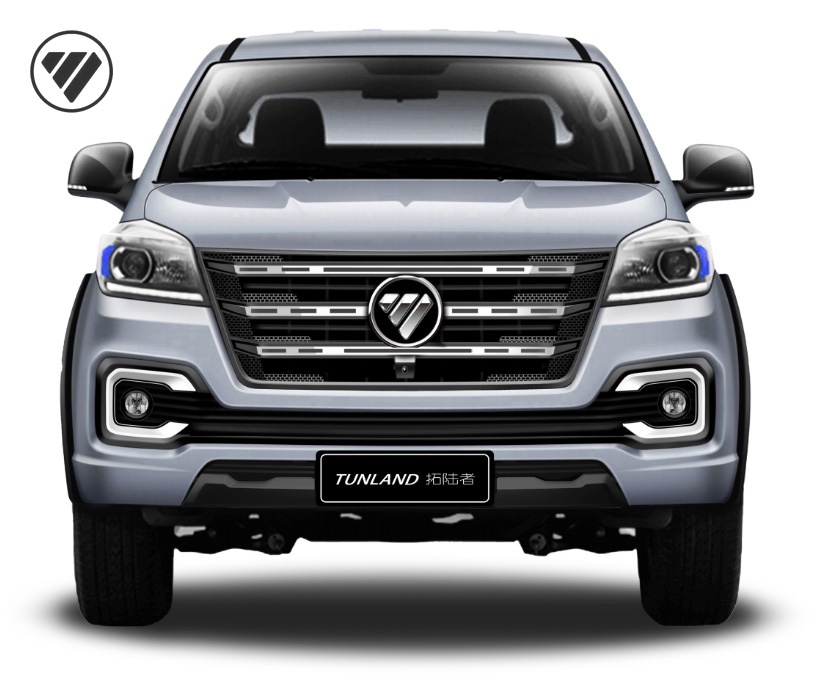

TUNLAND S

TUNLAND S

With a business scope covering a full series of commercial vehicles including medium and heavy-duty truck, light-duty truck, mini truck, van, pickup, bus, and construction machinery vehicles, FOTON has become a leading commercial vehicle manufacturer in the world with dual routes of fuel and new energy solutions. Focusing on commercial vehicle filed since it’s born.

+86 18366529998

WhatsApp

CONTACT US

- Product Description -

Interior

The interior of the Tunland shows great attention to detail.
High-performance three-dimensional LED lights provide great visual comfort.
A handy 5-speed gear lever makes shifting easy and fun.
Full electronic controls are in place, including a unique locking system.

Convenience

The Tunland is extremely spacious: the interior width is 1880 mm, which gives you a great feeling of driving comfort. The large windshield gives you an amazing field of vision. Rear legroom can easily provide rear seat passengers with 800mm of legroom.

Ergonomic Design: The smart layout and premium air conditioning vents blend perfectly with the overall design, providing you with a pleasant temperature and atmosphere when you sit in the pickup. Tunland’s interior really helps you relax and enjoy the trip.

Adjustable seats: The driver’s seat can be adjusted six ways, allowing you to find the perfect and most comfortable position while driving. Storage space: Extremely large storage space makes travel easy and convenient.

Quality equipment

Adjustable seats: The driver’s seat can be adjusted in six ways, allowing you to find the ideal and most comfortable position while driving.

Multi-functional steering wheel: The steering wheel is equipped with volume control, Bluetooth, cruise control and other common functions, which makes your driving experience convenient and safe.

HiFi entertainment system: The Tunland is equipped with an integrated USB and AUX digital interface, hi-fi equipment as well as a voice control system, giving you the highest degree of comfort.

Adaptable temperature

Thanks to BOSCH’s high-pressure common rail system and the electronically controlled Cummins engine cold start control, starting the engine at -40°C is not a problem.

ABS+EBD

Equipped with BOSCH’s four-channel ABS+EBD, the Tunland lets you retain steering control and driving stability during hard braking.

Child safety seat

This device has been specially designed for children traveling in a safety seat.

Respect the environment

The application of the latest technologies makes the engine extremely environmentally friendly. The engine features ECU (Electronic Control Unit) control technology and uses SCR (Selective Catalytic Reduction), EGR (Exhaust Gas Recirculation) technologies. By using precise mechanisms for measuring and controlling the air intake and combustion process, nitrogen oxide (NOX) and particulate pollution is significantly reduced.

4WD

With the part-time 4×4 system, a part-time 2-speed push button can choose the appropriate mode according to different road conditions.

· 2H mode: normal use on the road

· 4H mode: off-road use on wet or slippery ground

· 4L mode: extreme off-road use

Towing

The Tunland is powerful enough to tow a 2.5 tonne caravan, so you can enjoy life anytime, anywhere.

Charge capacity

Tunland’s 4.35㎡ truck is spacious and its loading capacity is up to 1.5 tons.


- Product Specifications -

Product modelBJ2037Y3MDV-S
Type of driving4×4
BodyDouble-cabin
Main dimensions of whole vehiclesOverall dimensions (LxWxH)mm5310*1880*1860
Internal body dimensions (LxWxH)mm1520x1580x440
Minimum ground clearance (at full load, mm)200
wheelbase (mm)3105
Weight dataEmpty weight (kg)1950
Rated payload (kg)1025
Number of people in the cabin5
Gross vehicle weight (kg)2975
EngineModelISF 2.8
Maximum power(Kw)120(3600rpm)
Maximum torque (Nm)365(1800-3000rpm)
Electrical systemSkid plate under the engine
Protection under the oil tank
vehicle axleRear axleDANA AXLE series | Without LSD

16 inch aluminum alloy.

265/70R16

Full size aluminum spare wheel / 1 pcs

Leather (with airbag)

Multifunction steering wheel | With airbag + with all multifunction buttons
Brake safetyABS+EBD

Front disc, Rear disc
Exterior trimFront bumperNew “Wing” front grille model
Rear bumper
Wheel arch

Brake light in high position
side pedal
Front fog lamp
daytime running lightElectric adjustment with defrost function, manual folding


Chrome mirror
Bodywork insideType of spray


Interior trimSeatFirst row seat (leather, manual, 4-position headrest with abdominal support)

Second row seat (Leather + fixed backrest + rollover cushion)

with pretensioner and force limiter (3-point type)

Second row seat belt (common seat belt (3 point type, middle seat with 2 point type)
sun visorDriver side sun visor with bag. chemical fiber
rear screenWith defrost function
Opening and closing of partiesVehicle doors and windowsElectric window/one-touch control at the bottom. Electric front door and rear door.
One-key up / with anti-pinch functionDriver side
Remote car closing / Remote window closing
A flat key + a folding keyWith remote control and without lock
Electrical systemElectric clockClock
Airbag on the driver’s seat
Airbag on the co-pilot’s seat
Lighter1


AM/FM radio + MP5 (AUX + USB) + Reverse screen player + bluetooth port

4
Reversing radarBuzzer
Air conditionerAC. Cooling and heating automatic mixer type electric air conditioner.

air heater
